In order to export production ready HTML from Emailify, you’ll need to create your email layout using the design tools provided as part of the Emailify Figma Plugin, which you can then customize the content and style of as needed. This will add special layers to your page to ensure that the plugin understands what each element is (eg. a “Row” is a row, a “Column” is a column, a “Button” is a button, etc).
Adding layers or frames that were previously designed in Figma without the Emailify plugin will be rendered as a static image, instead of rich text/HTML content.
Emailify will automatically detect if a layer contains areas of full transparency and set PNG as the default export format, otherwise it will be set to JPG. You can override this to set the export format of any layer to JPG or PNG by adding your own export setting.
If you highlight the text you’d like to link in the Figma text layer, and then click on the native Figma “Link” icon button in the Figma header toolbar area, that will let you paste a URL in, which Emailify will automatically render.
While Figma doesn’t provide a way for plugins to detect superscript or subscript positioning in text layers, the solution for getting it to work with Emailify exports is to manually add in a
<sub> tag (eg.
<sub>1</sub>) around the content of your text in that Figma text layer, and that will automatically get rendered as superscript or subscript tags in the HTML export from the plugin.

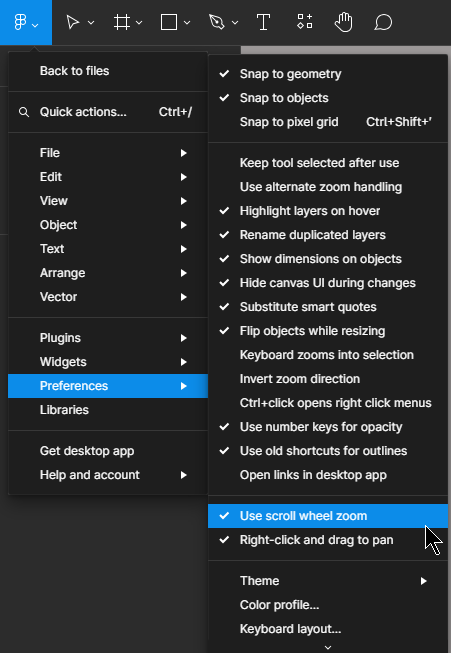

There’s a known issue with the Figma desktop app (only on Windows), which also happens for normal file exports from Figma. When you go to save your file, you may see an “all files” label. If you ignore this and continue by clicking “Save”, it should still save the file with the correct extension and allow you to open it as expected after it has downloaded to your computer. If it still saves the file with a blank extension, you should be able to rename the file to manually append the correct extension to the file name.
The biggest factor in the exported HTML is the number of “Row” components in your design; each time a “Row” is used, it creates a brand new set of
<table> elements etc. The best way to optmize the size of your exported HTML is to try to avoid creating a new row if you don’t need to.
For example, if you’re adding a “heading” text layer, a “subheading” text layer, a “body” text layer and maybe a “button” layer; you can keep all 4 of these content layers inside of a single “Column” that’s inside of a single “Row”, so there’s no need to create 4 seperate “Row” layers for each of these content layers.
If you’re clicking on an Emailify layer in your Figma design and the settings aren’t showing up when clicking the Settings button in the plugin header, your main Emailify frame may be nested inside of other frames or groups etc; to resolve this, you can move your Emailify frame out of any nested frames/layers and move it back out to the “Page” level, so that it isn’t nested inside of any other layers.
If you’re exporting your email while the image assets in Figma are still progressively loading, they may be exported looking pixelated, as the image wasn’t fully loaded in the Figma file before it was exported. To resolve this, please ensure that all of the images have loaded 100% and are looking sharp inside the Figma file before exporting your emails with the Emailify plugin.
To help further with solving this issue, you can use the “Downsizer” feature in TinyImage to shrink down your image fills to match their layer size, which will shrink their file size and ensure they load much faster in your Figma file.
Please note, if you’re in China, the accounts server may be blocked by “The Great Firewall of China”. If you’re seeing a activation error, despite using a valid key, you will likely need to use a VPN to resolve the issue.
If you’ve enabled the Upload Hosted Image URLs feature, or uploaded the HTML email to any email platform using the built-in Emailify export options, the plugin will automatically upload the images online to be hosted automatically.
If you’re seeing a warning message in the plugin (Images uploads may be blocked on your current network), this means that the plugin isn’t able to access the URL required to upload the images (
This is usually usually due to the network (eg. your company, which may have a firewall blocking certain URLs) or ISP (internet service provider) you’re connected to restricting or blocking the URLs; to troubleshoot this:
- Try tethering your mobile phone as a Wi-Fi hotspot to your machine, then re-run the Emailify Figma plugin again to see if this resolves the issue. If so, it means that your other network was blocking the requests.
- You can also try using a VPN, which should tunnel your network requests and get around any network blocking issues.
- If you’re already using a VPN, try turning that off, then re-run the Emailify Figma plugin again to see if this resolves the issue.
If you’re still having issues, please feel free to get in touch via email.
The support for
<form> elements in HTML emails is still quite low, and can cause the emails to be flagged as spam etc if they’re included, so it’s best to avoid using native forms inside of HTML emails at the moment.
The best workaround is to create a nice looking call to action (CTA) button in your Emailify design, and then link that off to an external form URL like Google Forms or Typeform, and collecting the information from recipients there via the browser instead.
Thare a couple of really good articles below describing what image blocking is and which email clients enable it by default (mainly Outlook), whereas other clients like Gmail, Android, Apple/iOS etc all show images by default.
Unfortunately, it’s not related to if the images are secure (SSL) or not, it’s always just across the board for any images inside of the email.
The upside is that usually if the recipient is using one of the former email clients, they’re fairly used to this happening and clicking the “show images” button, or more likely have already enabled images to show by default for incoming emails.
Unfortunately, if someone decides to forward a custom HTML email that they’ve received to someone else, this often visually breaks the email after it’s forwarded on to somebody else.
The reason for this is that different email clients will modify (or remove) part of the HTML code when the email gets forwarded, causing it to break; as this When Forwarded Emails Break article from Litmus details:
It’s common knowledge that email clients all render email differently. When a subscriber forwards an email, some email clients make changes to the code of the forwarded message. This can include stripping out certain HTML elements, wrapping your email in a blockquote, or inserting additional classes to your code—all of which can break your design and make the email less functional for the recipient of the forwarded email.
If you’ve enabled the Upload Hosted Image URLs feature, or uploaded the HTML email to any email platform using the built-in Emailify export options, there’s a very rare edge case where certain IP addresses assigned by some VPNs are blocked by the image host and will prevent the image from loading.
If you’re having any issues with images not loading, this is the likely cause (please temporarily turn off your VPN to verify this yourself).
Currently, support for dark mode override styles in email clients is still relatively low; so please be aware of this and try to design your emails with the “progressive enhancement” of these dark mode overrides in mind.
It’s also worth using some other clever design techniques for creating your email with dark mode in mind as a fallback with other email clients, too.
Currently, support for custom fonts in email clients is still quite low, so using web safe fonts is recommended for your Figma text layers, which you can set via the Configure Fonts panel under the “Preview” feature in Emailify.
Also, certain email service providers (like MailChimp) actively strip them out before the email is even sent to ensure that only web safe fonts are used.
However, Emailify still includes Google Font @imports, and also sets a fallback websafe font (eg. “Arial”, “Georgia” or “Courier”) if a Google Font is being used for rich text. They’ll be visible on any email clients that support the use of @font-face in emails.
While this seems to be rare, if you’re having any issues with links to some social networks (eg. Facebook, Instagram) not opening correctly, this is the likely cause (please temporarily turn off your VPN to verify this yourself), and not an issue with the HTML email or the links themselves.
Unfortunately, the border-radius property isn’t supported in Outlook, so it will always fall back to normal square edges instead. Please see the border-radius support list for a better idea of which email clients support this CSS property.
If you’re seeing the height of a button component collapsing to the size of the text layer inside of it, Outlook.com does this if the
href isn’t set to a real URL (eg.
[replaceLinkInHere] instead of a real URL like
https://google.com). Setting a real URL on your button component by clicking on the button layer in Figma, and using the Settings button in the plugin, and paste in your URL there.
There’s a bug in some versions of Outlook when using the reverse column setting where a 1px white line shows up on the left hand side of the left column. This happens when the row with the “reverse” setting (which uses the
dir="ltr" attribute in the HTML) also has padding applied to it. To resolve this, you can set the padding of the “Row” layer in Figma to “0” and add any padding onto the inner columns instead.
There’s a very annoying issue known as the Outlook 1px line bug that randomly appears in certain versions of Outlook where:
Outlook will add extra lines to our emails. These lines will inherit the background set on your
<body>tag… to make matters worse, this bug seems to happen at random, although it does appear more regularly on Windows 10 machines, compared to Windows 7.
As mentioned in the article above, while it’s quite random and there’s no reliable fix for it; it can usually be solved with some trial and error of adjusting the font size for the text content above where the line shows up. For example (from the article):
For some folks, the fix is as simple as changing font sizes from odd numbers to even numbers. For example, if you have a font size of 13px or 15px, try converting it to 14px.
There’s another good overview article called Fixing White Lines in Outlook that goes into some extra detail and potential fixes, too.
For a deeper dive, this Outlook 2016 madness and the weird 1px thin horizontal lines article goes into some more detail about the underlying issue, and this detailed Litmus forum discussion also speculates on possible causes and ways to try troubleshooting it.
Gmail clips emails that have a message size larger than 102KB, and hides the full content behind a “View entire message” link. To avoid this, use the Preview button to see the size of your HTML file before exporting, and remove as much content as possible to try and get the file size down.
If the email is still getting clipped, despite being under the HTML file size limit, it’s most likely due to a UTF-8 character being used in the email content, which also can trigger Gmail to clip the email. The best solution here is to replace the UTF-8 character with its HTML encoded version (eg. by using
© instead of
Gmail (and other apps) will automatically apply dark mode styles to your email when the user’s system theme is set to dark mode, which includes buttons.
To keep white button text white on dark mode in Gmail mobile apps, Emailify will automatically add some extra code to force this if you ensure the button text layer is set to pure white (eg.
#fff) in Figma, and also has a dark mode override text color set to pure white (
#fff) in the Settings panel when your
Button component is selected.
Some email service providers (like MailChimp) will try to modify your email’s HTML before it gets sent out, which can cause some of the columns in your email to stack on Gmail when viewed on desktop, instead of being in a row.
Usually for the purpose of these platforms modifying your HTML is to ensure they’re “inlining” styles onto your HTML elements; however, Emailify automatically pre-inlines all of the CSS styles, so that your emails are production ready. If you can find a setting in your email service provider’s HTML/import options to “disable” this inlining or modification, this should resolve the issue.

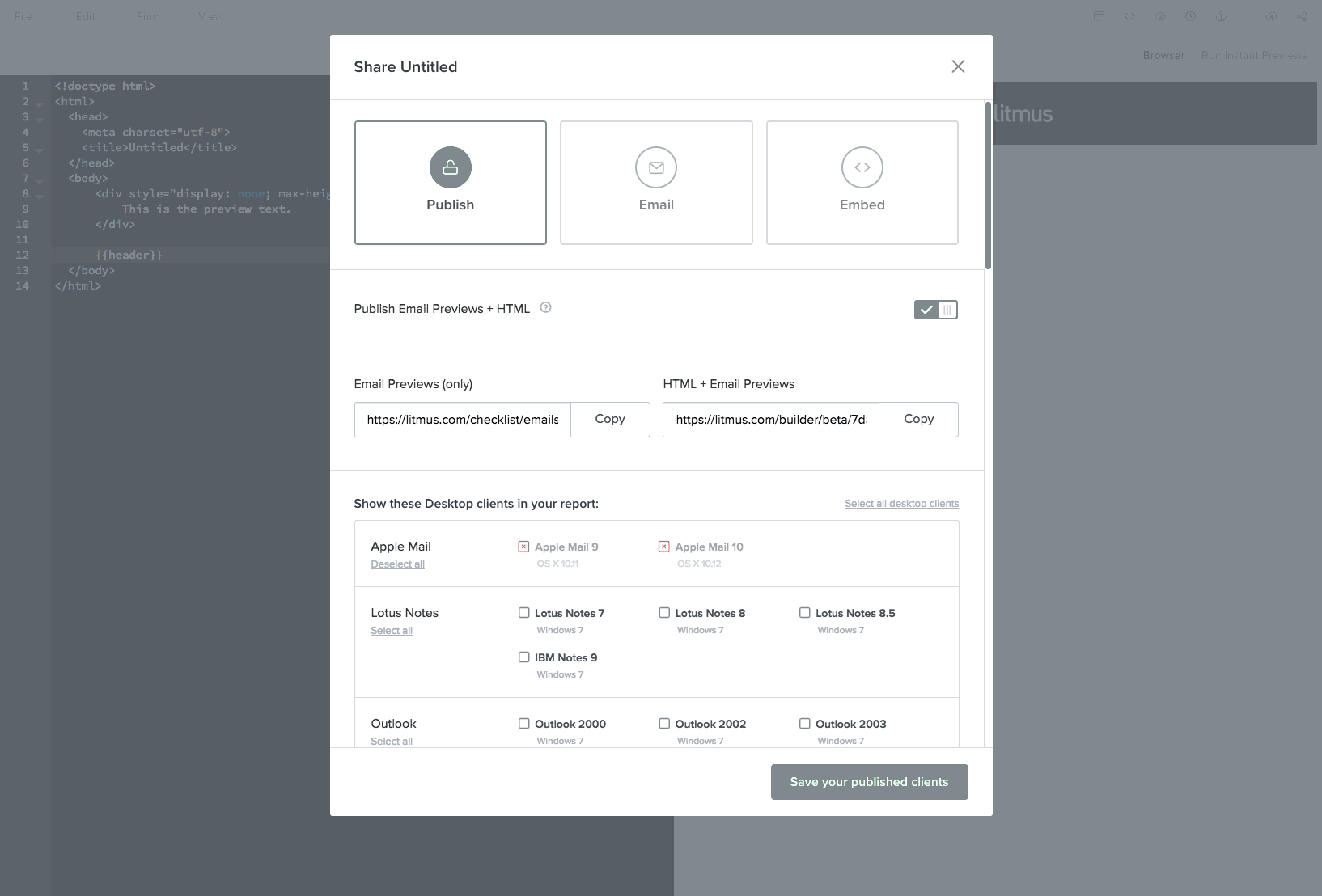

If you’re unsure if it’s being caused by your email service provider or the code itself, please use a free service like PutsMail (which won’t modify any of your HTML) to send yourself an email test. If the test works from PutsMail, then your email service provider is modifying your HTML before it’s sent out.
If your email contains mostly image blocks, without rich text, or lots of image blocks before any rich text lower in email, Gmail will sometimes think that the email is in a different language and prompt you to translate it into English, this is despite the code automatically getting a
lang="en" attribute added to the
<body> tags by Emailify.
As per this article discussing it on the Litmus forums:
We have found (empirically) that mails containing a lot of CSS and HTML before any actual content get classified as English even though the content is in another language.
Our workaround is to send a multipart text and HTML email, with a text version before the HTML part. Of course the text must be consequent, not just “Bonjour …”, as otherwise the HTML tags/CSS are still dominant.
The translation algorithm does not seem to make any attempt to strip out html/css from the body of the mail, or if it does, perhaps it truncates the message before stripping and so ends up with very little content to use for detection purposes. (It is easy to end up with >5000 caracters of headers and CSS these days before a single line of content.)
<video> tags sadly aren’t supported for HTML emails, the best way to add animated images or video content into your HTML email designs is to use GIFs instead; either using a GIF file downloaded from the internet, or one you’ve created yourself.
If you already have a video you’d like to use as a GIF, you can use a free app called Gifski to help convert short video files into animated GIF files to use in your email designs.
Then there’s also a good walkthrough video tutorial that goes through the different ways that you can use GIFs in your Emailify designs and include them in your exports to HTML.
GIFs are a bit different from normal JPG/PNG images, as they can only contain a maximum of 256 colors. If you’re using highly detailed images or gradients with lots of color variation, it’s expected that it won’t look as sharp or have the same color accuracy as the original images used as the source of the GIF due to this limitation of the GIF format.
The GIF file format supports either 0% opacity or 100% opacity, but nothing in between. This means that you can have an animated GIF with a completely transparent background behind elements that are completely opaque and visible. This means that layers either need to be completely transparent or not; any layers with lower than 50% opacity will be transparent, while any layers with opacity greater than 50% will be opaque.
If you drop your GIF into Figma and resize the layer proportionally to maintain the original aspect ratio, Emailify will automatically use the original GIF file in your exports.
Conversely, if you change the aspect ratio of your Figma layer to be different to the original GIF, Emailify will need to re-create your GIF to account for the cropped image area, which can lead to larger GIF file sizes and a slower export times.
If you’ve used GIFs in your design, but aren’t seeing them show up when you do a test send to a Gmail inbox, it’s likely that the Gmail image caching limit of 20mb is being hit, which causes it to not render.
During export to HTML, Emailify will try to compress any GIFs over 20mb to get them underneath the 20mb file size limit for Gmail, which should resolve this issue in almost all cases (unless the GIF is exceptionally long, large in size, or contains a very high frame rate to begin with).
There is a random bug with the Klaviyo that causes it to have an Error 500 (internal server error), where it shows a page saying Something is amiss. We’re on it.; this seems to mainly happen if the template is “Editable”.
Klaviyo are aware of this bug, but there doesn’t seem to be any plans to fix it in the near-term.
One workaround here is to remove the GIF in your Figma design before exporting the HTML for Klaviyo, and then upload the GIF image separately into Klaviyo after the template editor loads without the error above.
Due the Klaviyo updating their editor, and forcing all templates to use it as of June 6th 2023; unfortunately, if you’re exporting HTML emails with the Editable Content toggle enabled in Emailify, Klaviyo will automatically apply ~18px of additional padding around each text element by default, as an inline
style attribute to a new
<td> element that it injects into the HTML if it’s an editable template.
Enabling the Force the padding added by Klaviyo’s new editor to be 0px toggle in Emailify does automatically add some extra CSS to remove this padding for all mobile clients and non-Outlook desktop clients like Gmail etc, however, Outlook will still render the padding unless each of the “Padding” values for any editable text blocks in your template are manually changed to “0” when editing the email for your Campaign in the Klaviyo editor.
You can optionally enable your images in the template to be editable in MailChimp with the Editable Images toggle, but unfortunately, MailChimp doesn’t support editable @2x retina images, so these will be @1x instead.
If you’d prefer to have @2x retina images that aren’t editable, please leave this option turned off.
